Product information
Self generating race ignition system for Yamaha TA125 + AS1/2/3 years 1968-76.
Highspeed (up to 22.000rpm) magnet based solid state ignition for vintage bike racing applications. At 18.000rpm (i.e. 36.000 sparks/min) still 25 Kilovolts output. (3.000-8.000rpm = 40kV, see diagram). Diameter of rotor is 59mm, rotor weight is 180 gramms.
Replaces such systems as Motoplat, Hitachi, Fensatronic and Kröber.
Note: No facility for lighting provided!!
No lights - no use on public roads! (consult national regulations)
Kit includes all parts including CNC machined backing plate, bolt-on and play product.
PART NO: 71 03 599
Highspeed (up to 22.000rpm) magnet based solid state ignition for vintage bike racing applications. At 18.000rpm (i.e. 36.000 sparks/min) still 25 Kilovolts output. (3.000-8.000rpm = 40kV, see diagram). Diameter of rotor is 59mm, rotor weight is 180 gramms.
Replaces such systems as Motoplat, Hitachi, Fensatronic and Kröber.
Note: No facility for lighting provided!!
No lights - no use on public roads! (consult national regulations)

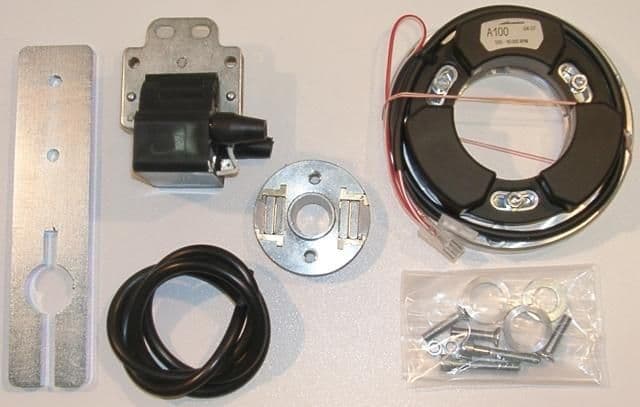

Kit includes all parts including CNC machined backing plate, bolt-on and play product.
- all parts are new
- very stable ignition with high energy spark
- better starting and fuel burning, increases engine performance
- no problem with points anymore
- very lightweight, rotor at 180gr, total system at 850gr
PART NO: 71 03 599
Technical specifications
| Brand | Power Dynamo |
| Product Code | 71 03 599 |
| Weight | 4kg |
