POWERDYNAMO IGNITION SUZUKI T250 & T500 & TR500 RACE IGNITION SYSTEM 68-75 (71 08 599)
POWERDYNAMO IGNITION SUZUKI T250 & T500 & TR500 RACE IGNITION SYSTEM 68-75 (71 08 599)

POWERDYNAMO IGNITION SUZUKI T250 & T500 & TR500 RACE IGNITION SYSTEM 68-75 (71 08 599)

Product code: 71 08 599

Product information

Self generating ignition system for 1968-75 Suzuki T250 & T500 & TR500.
Highspeed (up to 22.000rpm) magnet based solid state ignition for vintage bike racing applications. At 18.000rpm (i.e. 36.000 sparks/min) still 25 Kilovolts output (3.000-8.000rpm = 40kV, see diagram). Diameter of rotor is 59mm, rotor weight is 180 gramms.

Replaces such systems as Motoplat, Hitachi, Fensatronic and Kröber.
will not drive Kröber Tacho

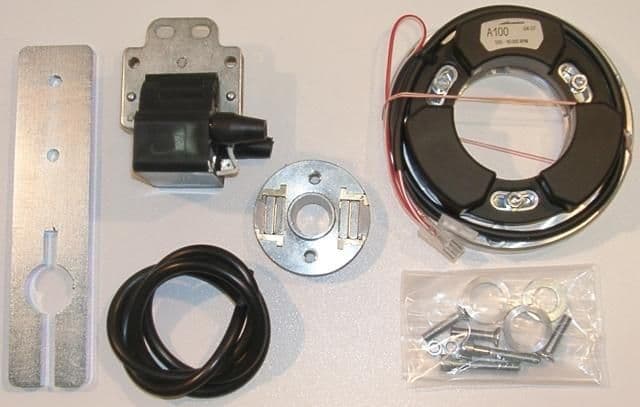

Kit includes all parts including CNC machined backing plate, bolt-on and play product.

  • all parts are new
  • very stable ignition with high energy spark
  • better starting and fuel burning, increases engine performance
  • no problem with points anymore
  • very lightweight, rotor at 180gr, total system at 850gr

PART NO: 71 08 599

Technical specifications

Brand Power Dynamo
Product Code 71 08 599
Weight 4kg
