Product information
Self generating race ignition system for Suzuki GT250 + 500 1975-77 models.
Highspeed (up to 22.000rpm) magnet based solid state ignition for vintage bike racing applications. At 18.000rpm (i.e. 36.000 sparks/min) still 25 Kilovolts output. (3.000-8.000rpm = 40kV, see diagram). Diameter of rotor is 59mm, rotor weight is 180 gramms.
Replaces the stock Suzuki PEI or such replacement systems as Motoplat, Hitachi, Fensatronic and Kröber.

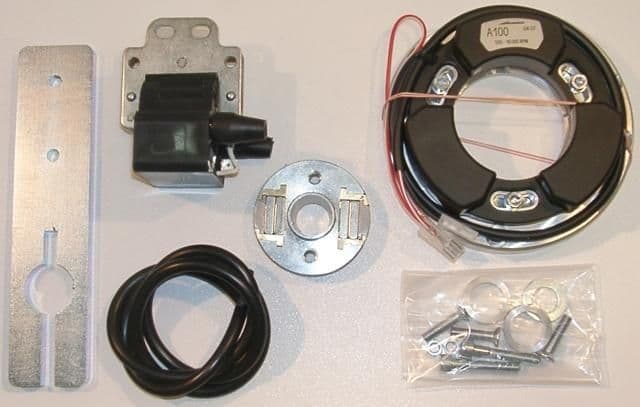

Kit includes all parts including CNC machined backing plate, bolt-on and play product.
PART NO: 72 01 599
Highspeed (up to 22.000rpm) magnet based solid state ignition for vintage bike racing applications. At 18.000rpm (i.e. 36.000 sparks/min) still 25 Kilovolts output. (3.000-8.000rpm = 40kV, see diagram). Diameter of rotor is 59mm, rotor weight is 180 gramms.
Replaces the stock Suzuki PEI or such replacement systems as Motoplat, Hitachi, Fensatronic and Kröber.
Note: No facility for lighting provided!!
No lights - no use on public roads! (consult national regulations)
Kit includes all parts including CNC machined backing plate, bolt-on and play product.
- all parts are new
- very stable ignition with high energy spark
- better starting and fuel burning, increases engine performance
- no problem with points anymore
- very lightweight, rotor at 180gr, total system at 850gr
PART NO: 72 01 599
Technical specifications
| Brand | Power Dynamo |
| Product Code | 72 01 599 |
| Weight | 4kg |
