Product information
Complete Generator/Electronic Ignition system for KAWASAKI KDX 175/250, KX500 GRUNDPLATTE/BASE MIT 110MM.
If it is 108mm you'll need system 78 39 799 00!
Should there be no base plate for the stator at all as the Stator is directly fitted to the carter, we can not help yet with a system
There are (at express customer demands) 2 Powerdynamo Systems for KX500. This system with rotor 1.1kg (35oz)
and system 77 12 799 00 with rotor 0.7kg (24oz). both systems differ! you can not just swap the rotor. It will neither fit nor reliably work electrically!

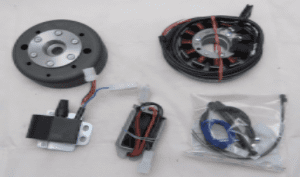

Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC. Solid state ignition with own power supply from within the system. Replaces old magneto, pickup, regulator and ignition coil.
PART NO: 73 01 799
If it is 108mm you'll need system 78 39 799 00!
Should there be no base plate for the stator at all as the Stator is directly fitted to the carter, we can not help yet with a system
There are (at express customer demands) 2 Powerdynamo Systems for KX500. This system with rotor 1.1kg (35oz)
and system 77 12 799 00 with rotor 0.7kg (24oz). both systems differ! you can not just swap the rotor. It will neither fit nor reliably work electrically!
Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC. Solid state ignition with own power supply from within the system. Replaces old magneto, pickup, regulator and ignition coil.
No changes on engine casing needed.
- all parts are new
- very good light output
- very stable ignition with solid spark
- better starting, better fuel burning
PART NO: 73 01 799
Technical specifications
| Brand | Power Dynamo |
| Product Code | 73 01 799 |
| Weight | 4kg |
