Product information

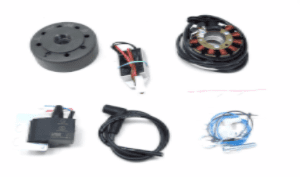

Complete Generator/Electronic Ignition system for KAWASAKI KDX 175 GRUNDPLATTE/BASE MIT 108MM 1980-1982.
If it is 110mm you'll need system 73 01 799 00!
Should there be no base plate for the stator at all as the Stator is directly fitted to the carter, we can not help yet with a system
Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC. Solid state ignition with own power supply from within the system. Replaces old magneto, pickup, regulator and ignition coil.
PART NO: 78 39 799
If it is 110mm you'll need system 73 01 799 00!
Should there be no base plate for the stator at all as the Stator is directly fitted to the carter, we can not help yet with a system
Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC. Solid state ignition with own power supply from within the system. Replaces old magneto, pickup, regulator and ignition coil.
No changes on engine casing needed.
- all parts are new
- very good light output
- very stable ignition with solid spark
- better starting, better fuel burning
PART NO: 78 39 799
Technical specifications
| Brand | Power Dynamo |
| Product Code | 78 39 799 |
| Weight | 4kg |
