Product information

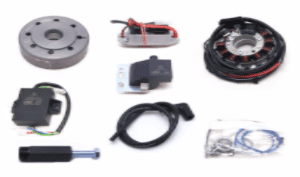

Magnet based generator with integrated solid state ignition. Output 12V/100W DC. Replaces the old magneto and the complete ignition system. Solid state, maintenance free, electronic ignition.
Ignition is mounted at crankshaft level (part of magneto). The original contact breaker at camshaft level is no longer needed and may be taken out. There is no need for changes on engine casing.
Please during assembly first check rotor height without stator!
- stator plate fixed with 3 screws
- diameter of stock rotor is 117mm
- stator plate fixed with 4 screws
- diameter of stock rotor is 129mm
- all parts are new
- very good light output
- very stable ignition with solid spark
- better starting, better fuel burning
- no wear anymore on points
Technical specifications
| Product Code | 72 47 999 |
| Weight | 4kg |
