Product information
12V/150W

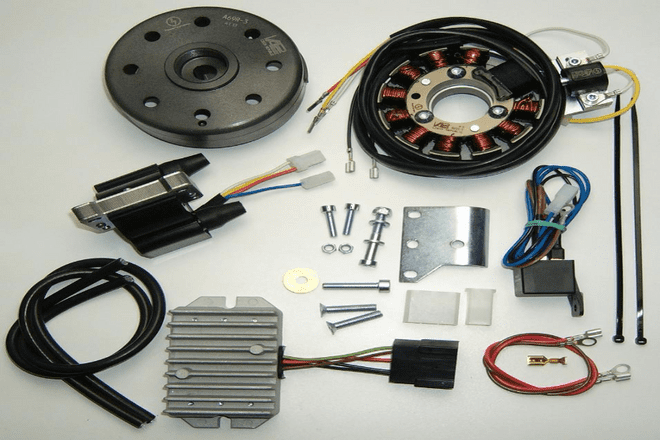

Magneto based generator with integrated fully electronic ignition. Output 12V/150W DC. Solid state ignition with own power supply from within the system. Replaces old dynamo, points, condenser, ignition coils. You may drive without a battery, if you want. There is no need for changes on engine casing.
Should your motorcycle have an electronic tachometer (as a few 634 versions had), than this tach will not work with the new system. See our information on electronic tach with this system.
The system can be used for CZ471, but you have to take the crank pin out as timing is different (see instructions)
6V/100W
The 6 Volt system does not support the charge control light (the 12 volts system 634 61 799 does).
Magnet based generator with integrated fully electronic ignition. Output 6V/100W DC. Solid state ignition with own power supply from within the system. Replaces old dynamo, points, condenser, ignition coils. You may drive without a battery, if you want. There is no need for changes on engine casing.
PART NO: 634 61 799
Magneto based generator with integrated fully electronic ignition. Output 12V/150W DC. Solid state ignition with own power supply from within the system. Replaces old dynamo, points, condenser, ignition coils. You may drive without a battery, if you want. There is no need for changes on engine casing.
Should your motorcycle have an electronic tachometer (as a few 634 versions had), than this tach will not work with the new system. See our information on electronic tach with this system.
The system can be used for CZ471, but you have to take the crank pin out as timing is different (see instructions)
6V/100W
The 6 Volt system does not support the charge control light (the 12 volts system 634 61 799 does).
Magnet based generator with integrated fully electronic ignition. Output 6V/100W DC. Solid state ignition with own power supply from within the system. Replaces old dynamo, points, condenser, ignition coils. You may drive without a battery, if you want. There is no need for changes on engine casing.
PART NO: 634 61 799
- all parts are new
- more light output
- very stable ignition with solid spark
- better starting, better fuel burning
- no hassle anymore with setting points
Technical specifications
| Product Code | 634 61 799 |
| Weight | 4kg |
